IMPRESION CRISTAL GRAN TAMAÑO /BIG SIZE CRYSTAL PRINTERS

LASER MACHINES : HSGP- 1280 /2513 /3015 /300185 /LA /LB



Máquinas para grabado o tallado laser sobre cristal o acrílico.

Estos 6 modelos, tienen diferentes propiedades dependiendo de cada modelo, pero la principal diferencia de cada una es la dimensión:



*-HSGP-1280 tiene 1200x800 mm de area trabajo;

*-HSGP-2513->2500x1300mm ;

*-HSGP-3015->3000x1500;

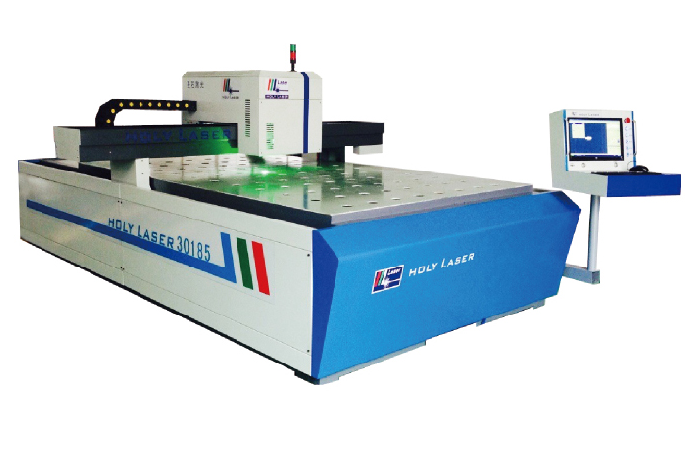

*-HSGP-300185-> 3000x1850mm







HSGP-12080 o MAX-I



Flat glass laser processing    2D/3D crystal engraving    Acrylic laser engraving



Max I is deisgned for Industrial sub surface glass engraving with  need for large quantities .features with the latest crystal laser technology.

 Features:



*-800*1200*130mm engraving area

*-High efficiency&High quality

*-Easy operation and maintenance

*-Comsumer price

*-Custom design available

   TECHNNICAL DATA



Max I M
Laser Semiconductor Diode,532nm,4000Hz
Life span 20.000 hours
Max.Engraving aera (L*W*H) 800*1200*130mm
Max.Engraving speed 270000 point/min
Engraving point distance 0.06-0.12mm
Point size in glass/crystal 40-80μm
Resolution 800-1200dpi
Capacity 1500W
Cooling system air cooled
Room working temparature 5℃~30℃
Room working humidity 10-85%,not condensing
Air Clean air
Operating system Windows 2000/XP/7
Power supply 220(±10%)VAC,10A,50/60Hz
Power grid and ground wire Intenational standard
Engraving material crytal, glass, acrylic
Software Carvesoft software
Dimension (L*W*H) 1650*1850*1750mm
Package dimension(L*W*H) 1800*2020*1900mm
Net  weight 2200kg
Gross weight 2500kg
WARRANTY 24 months warranty
Delivery 45 days after down payment  confirmed





HSGP-3015



Max II is specific deisgned for Industrial sub surface glass engraving need for large-format appliaction.features with the latest laser technology



Features:

- 1500*3000*110mm engravig area /area grabado



- High efficiency&High quality  /altamente eficiente yde calidad



- Easy operation and maintenance / Facil operación y mantenimiento



- Comsumer price       /Precio asequible



- Custom design available / Disponibilidad para Diseño adaptado a las necesidades





3D LASER ENGRAVER
Flat glass laser processing 2D/3D crystal engraving Acrylic laser engraving
Max II M
Laser Semiconductor Diode,532nm,4500Hz
Life span 20.000 hours
Max.Engraving aera (L*W*H) 1500*3000*110mm
Max.Engraving speed 270000 point/min
Engraving point distance 0.08-0.15mm
Point size in glass/crystal 80-120μm
Resolution 800-1200dpi
Capacity 1800W
Cooling system air cooled
Room working temparature 5℃~30℃
Room working humidity 10-85%,not condensing
Air Clean air
Operating system Windows 2000/XP/7
Power supply 220(±10%)VAC,10A,50/60Hz
Power grid and ground wire Intenational standard
Engraving material crytal, glass, acrylic
Software Carvesoft software
Dimension (L*W*H) 2000*3300*2750mm
Package dimension(L*W*H) 2200*3450*2900mm
Net weight 2500kg
Gross weight 2700kg
WARRANTY 24 months warranty
Delivery 15 days as down payment confirmed
